OEM: Available
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Product Certification: ISO, CE, RoHS
Payment Terms: T/T, L/C, PayPal, Western Union
Chemical Composition | |||||||||
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Other |
≥ | ≤ | ||||||||
N2 | 99.98 | 0.001 | 0.003 | 0.002 | 0.005 | 0.003 | 0.001 | 0.007 | 0.02 |
N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.04 | 0.1 |
N6 | 99.6 | 0.06 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.1 | 0.5 |
N8 | 99 | 0.15 | 0.15 | 0.2 | 0.2 | 0.1 | 0.015 | 0.3 | 1 |
DN | 99.35 | 0.06 | .02-.10 | 0.05 | .02-.10 | .02-.10 | 0.005 | 0.1 | 0.35 |
NY1 | 99.7 | 0.1 | 0.1 | - | 0.02 | 0.1 | 0.005 | 0.1 | 0.3 |
NY2 | 99.4 | .01-.10 | 0.1 | - | - | - | .002-.01 | 0.1 | 0.6 |
NY3 | 99 | 0.15 | 0.2 | - | 0.1 | 0.1 | 0.005 | 0.25 | 1 |
NMg0.1 | 99.6 | 0.05 | 0.02 | 0.05 | 0.05 | .07-.15 | 0.005 | 0.07 | 0.4 |
NSi0.19 | 99.4 | 0.05 | .15-.25 | 0.05 | 0.1 | 0.05 | 0.005 | 0.07 | 0.5 |
Size(mm) | Tolerance(mm) | |||||
h8 | h9 | h10 | h11 | h12 | h13 | |
4.5≤Φ≤6.0 | 0/-0.018 | 0/-0.030 | 0/-0.048 | 0/-0.075 | 0/-0.120 | 0/-0.180 |
6.0≤Φ≤10 | 0/-0.022 | 0/-0.036 | 0/-0.058 | 0/-0.090 | 0/-0.150 | 0/-0.220 |
10≤Φ≤18 | 0/-0.027 | 0/-0.043 | 0/-0.070 | 0/-0.110 | 0/-0.180 | 0/-0.270 |
18≤Φ≤30 | 0/-0.033 | 0/-0.052 | 0/-0.084 | 0/-0.130 | 0/-0.210 | 0/-0.330 |
30≤Φ≤50 | 0/-0.039 | 0/-0.062 | 0/-0.100 | 0/-0.160 | 0/-0.250 | 0/-0.390 |
50≤Φ≤80 | 0/-0.046 | 0/-0.074 | 0/-0.120 | 0/-0.190 | 0/-0.300 | 0/-0.460 |
80≤Φ≤101.6 | 0/-0.054 | 0/-0.087 | 0/-0.140 | 0/-0.220 | 0/-0.350 | 0/-0.540 |
101.6≤Φ≤120 | 0/-0.220 | 0/-0.350 | 0/-0.540 | |||
120≤Φ | 0/-0.250 | 0/-0.400 | 0/-0.630 |

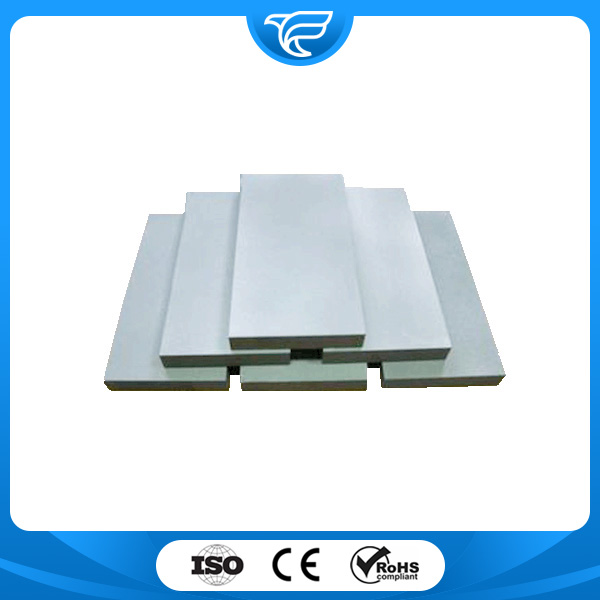

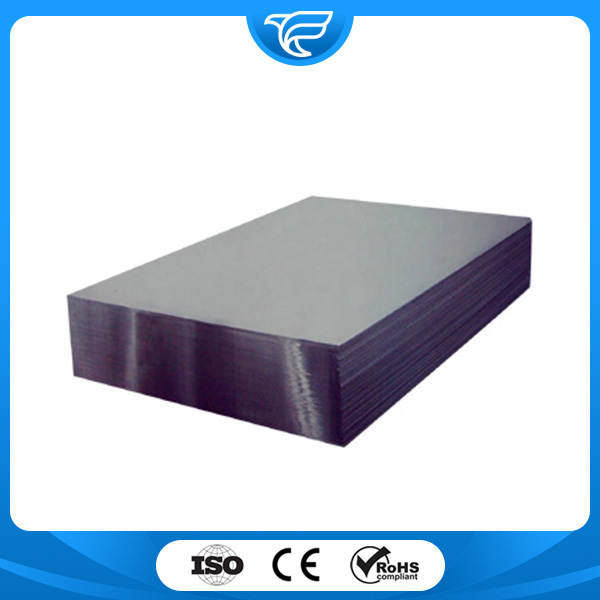

Nickel Alloy Steel is used extensively in applications where heat resistance and/or corrosion resistance is required. In some members of the group, where conditions are less demanding, some nickel is replaced by iron to decrease the overall cost.
1. Standard Exporting package.
2. Original package or neutral package.
3. According to clients ' needs.
4. Shipped in10-35 days after payment.
Price
Q: How can I get the price?
A: You can contact us through sending inquiry, calling, or get details price list by E-mail.
Delivery
Q: How long is the delivery time?
A: It depends on quantity. Usually, 10-35 working days.
Sample
Q: Can I get sample to check the quality?
A: Of course. We can supply sample, and free for some small value products.
OEM
Q: Do you provide OEM service?
A: Yes, we do. Customized design is available.
Payment
Q: What is your payment term?
A: L/C, T/T, PayPal, Western Union, etc.
Certificate
Q: What certificate do your products have?
A: CE, ISO9001, RoHS, SGS, etc.
