Characteristic: corrosion resistance
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union
SAF 2507 Duplex Stainless Steel alloy (UNS S32750) is a super-duplex stainless steel, a high-alloy duplex steel with a PRE value of min 42. The grade is characterized by very good chloride corrosion resistance, combined with very high mechanical strength.
SAF 2507 is particularly suited for use in aggressive environments such as warm chlorinated seawater and acidic, chloride containing media.
SAF2507 Stainless Steel Chemical Composition | |||||||
Chemical Composition | C | Si | Mn | P | S | Cr | Ti |
Standard | ≤0.03 | ≤0.80 | ≤1.20 | ≤0.035 | ≤0.020 | 24.0-26.0 | 0.2+4(C+N)~1.0 |
General | 0.008 | 0.18 | 0.2 | 0.020 | 0.001 | 17.50 | 0.3 |
Distinction | Physical Performance | |||
Ys(Mpa) | Ts(Mpa) | El(%) | Hv | |
Standard | ≥240 | ≥450 | ≥22 | - |
General | 550 | 430 | 32 | 150 |
Physical Performance | ||||
Density(g/cm) | Magnetism | Specific heat | Heat conductivity | Coefficient of thermal expansion |
7.7 | Yes | 460 | 26.4 | 10.5 |
SAF2507 Stainless Steel Characteristics:
Very high resistance to pitting and crevice corrosion
Excellent resistance to stress corrosion cracking (SCC) in chloride bearing environments
High resistance to general corrosion in acids
Excellent resistance to erosion corrosion
Excellent resistance to corrosion fatigue
Very high mechanical strength
Good weldability
SAF 2507 Stainless Steel Application:
It is used for heat exchangers and coolers and devices in oil refining, fertilizer, papermaking, petroleum and chemical industries.
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products

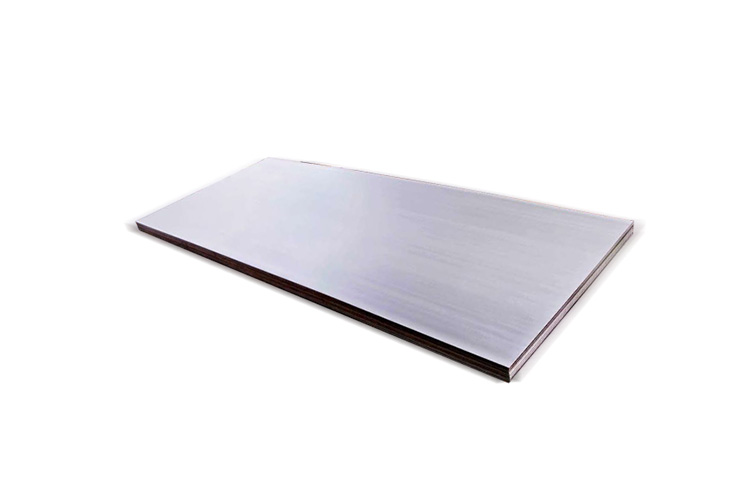

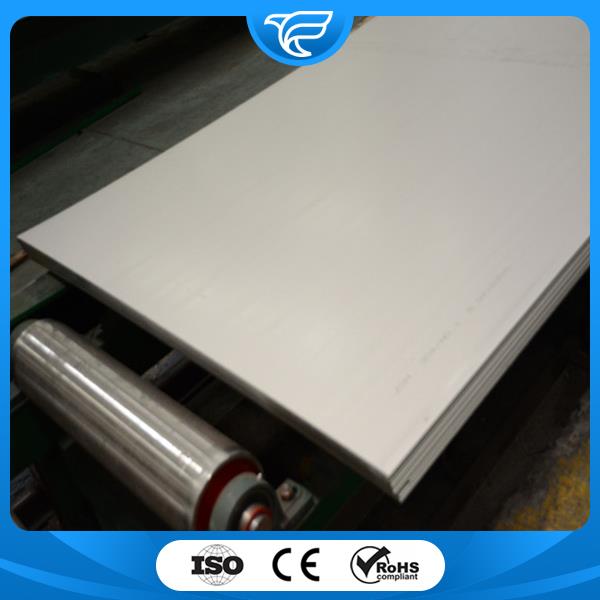

Cutting plates, including complex shapes of materials and special processing and disposal

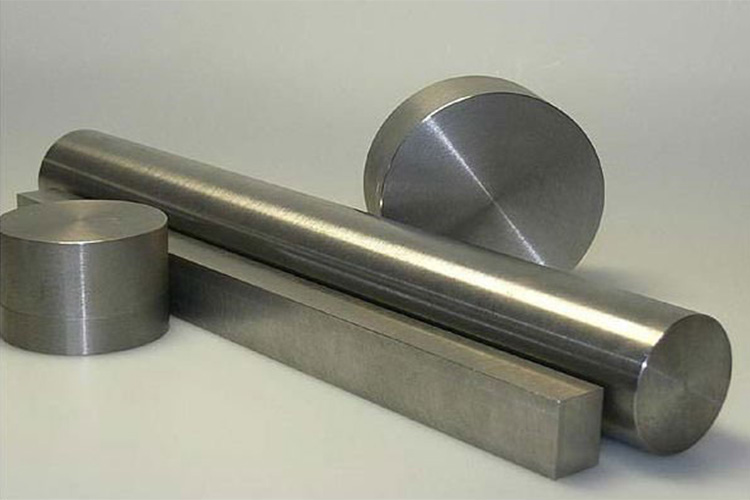

Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
