Stainless Steel Sheet/Plate

OEM: Available
Standard: ASTM, JIS, AISI, GB, DIN, EN
Product Certification: ISO, CE, RoHS
Payment Terms: T/T, L/C, PayPal, Western Union

Send Inquiry

Product Details

Specifications
200 Series	201, 202
300 Series	301, 304, 304L, 309, 309s, 310, 310S, 316, 316L, 316Ti, 317L, 321, 347
400 Series	409, 409L, 410, 420, 430, 431, 440, 441, 436, 439
Others	2205, 2507, 2906, 330, 660, 630, 631, 17-4ph, 17-7 ph, S31803, 904L, etc
Special Stainless Steel	904l, 347, 347h, 317, 317l, 316ti, 254mo
Duplex stainless steel	S22053, S25073, S22253, S31803, S32205, S32304, 2205, 2507
Cold rolled	0.1mm-6mm
Hot rolled	3.0mm-180mm
Width	1000/1219/1500/1800mm/2000mm
Length	Customized
Surface Finish	2B, BA, No.1,No.4,HL,No.8,Mirror etc Mirror, No.4, HL NSP, Bead Blast, Vibration, HL Gold, Mirror Gold, Vibration Gold NSP No.4 Copper NSP, Mirror Copper, Bead Copper, HL Brass, Mirror Brass, Bead Brass, HL Black, Mirror Black, Bead Black NSP, HL Bronze, Mirror Bronze, Vibration Bronze, Mirror Etched, HL Etched Copper, Mirror Black Etched, Mirror Etched Gold.

Type	Grade	Grade	Chemical Component %
Type	Grade	Grade	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
Austenitic stainless steel	201	1Cr17Mn6Ni5N	≤ 0.15	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030	-	≤ 1.00	-	≤ 0.25	-
	201L	03Cr17Mn6Ni5N	≤ 0.030	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030		≤ 1.00		≤ 0.25
	202	1Cr18Mn8Ni5N	≤0.15	17.00-19.00	4.00-6.00	7.50-10.00	≤0.060	≤0.030		≤ 1.00	-	≤0.25	－
	204	03Cr16Mn8Ni2N	≤0.030	15.00-17.00	1.50-3.50	7.00-9.00						0.15-0.30
		1Cr18Mn10Ni5Mo3N	≤0.10	17.00-19.00	4.00-6.00	8.50-12.00			2.80-3.50			0.20-0.30
		2Cr13Mn9Ni4	0.15-0.25	12.00-14.00	3.70-5.00	8.00-10.00
		2Cr15Mn15Ni2N	0.15-0.25	14.00-16.00	1.50-3.00	14.00-16.00						0.15-0.30
		1Cr18Mn10Ni5Mo3N	≤0.15	17.00-19.00	4.00-6.00	8.50-12.00	≤0.060	≤0.030	2.8-3.5	≤ 1.00	-	0.20-0.30	-
	301	1Cr17Ni7	≤0.15	16.00-18.00	6.00-8.00	≤2.00	≤0.065	≤0.030	-	≤ 1.00	-	-	-
	302	1Cr18Ni9	≤0.15	17.00-19.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	303	Y1Cr18Ni9	≤0.15	17.00-19.00	8.00-10.00	≤2.00	≤0.20	≤0.030	1)	≤ 1.00	-	-	-
	303se	Y1Cr18Ni9Se	≤0.15	17.00-19.00	8.00-10.00	≤2.00	≤0.20	≤0.030	-	≤ 1.00	-	-	Se≥0.15
	304	0Cr18Ni9	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	304L	00Cr19Ni10	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	304N1	0Cr19Ni9N	≤0.08	18.00-20.00	7.00-10.50	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	0.10-0.25	-
	304N2	0Cr18Ni10NbN	≤0.08	18.00-20.00	7.50-10.50	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	0.15-0.30	Nb≤0.15
	304LN	00Cr18Ni10N	≤0.030	17.00-19.00	8.50-11.50	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	0.12-0.22	-
	305	1Cr18Ni12	≤0.12	17.00-19.00	10.50-13.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	309S	0Cr23Ni13	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	310S	0Cr25Ni20	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	316	0Cr17Ni12Mo2	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤ 1.00	-	-	-
		1Cr18Ni12Mo2Ti6)	≤0.12	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1.80-2.50	≤ 1.00	-	-	Ti5(C%-0.02) ~0.08
		0Cr18Ni12Mo2Ti	≤0.08	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1.80-2.50	≤ 1.00	-	-	Ti5*C%-0.70
	316L	00Cr17Ni14Mo2	≤0.030	16.00-18.00	12.00-15.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤ 1.00	-	-	-
	316N	0Cr17Ni12Mo2N	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤ 1.00	-	0.10-0.22	-
	316N	00Cr17Ni13Mo2N	≤0.030	16.00-18.50	10.50-14.50	≤2.00	≤0.035	≤0.030	2.00-3.00	≤ 1.00	-	0.12-0.22	-
	316J1	0Cr18Ni12Mo2Cu2	≤0.08	17.00-19.00	10.00-14.50	≤2.00	≤0.035	≤0.030	1.20-2.75	≤ 1.00	1.00-2.50	-	-
	316J1L	00Cr18Ni14Mo2Cu2	≤0.030	17.00-19.00	12.00-16.00	≤2.00	≤0.035	≤0.030	1.20-2.75	≤ 1.00	1.00-2.50	-	-
	317	0Cr19Ni13Mo3	≤0.12	18.00-20.00	11.00-15.00	≤2.00	≤0.035	≤0.030	3.00-4.00	≤ 1.00	-	-	-
	317L	00Cr19Ni13Mo3	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.035	≤0.030	3.00-4.00	≤1.00	-	-	-
		1Cr18Ni12Mo3Ti6	≤0.12	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	2.50-3.50	≤1.00	-	-	Ti5(C%-0.02) ~0.08
		0Cr18Ni12Mo3Ti	≤0.08	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	2.50-3.50	≤1.00	-	-	Ti5*C%-0.70
	317J1	0Cr18Ni16Mo5	≤0.040	16.00-19.00	15.00-17.00	≤2.00	≤0.035	≤0.030	4.00-6.00	≤1.00	-	-	-
	321	1Cr18Ni9Ti6	≤0.12	17.00-19.00	8.00-11.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	Ti5(C%-0.02) ~0.08
		0Cr18Ni10Ti	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	Ti≥5*C%
	347	0Cr18Ni11Nb	≤0.08	17.00-19.00	9.00-13.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	Nb≥10*C%
	XM7	0Cr18Ni9Cu3	≤0.08	17.00-19.00	8.50-10.50	≤2.00	≤0.035	≤0.030	-	≤1.00	3.00-4.00	-	-
	XM15J1	0Cr18Ni13Si4	≤0.08	15.00-20.00	11.50-15.00	≤2.00	≤0.035	≤0.030	-	3.00-5.00	-	-	2)
Austenite Ferrite Stainless Steel	329J1	0Cr26Ni5Mo2	≤0.08	23.00-28.00	3.00-6.00	≤1.50	≤0.035	≤0.030	1.00-3.00	≤1.00	-	-	2)
		1Cr18Ni11Si4AlTi	0.10-0.18	17.50-19.50	10.--120..	≤0.80	≤0.035	≤0.030	-	3.40-4.00	-	-	Al 0.10-0.30; Ti 0.40-0.70
		00Cr18Ni5MoSi2	≤0.030	18.00-19.50	4.50-5.50	1.00-2.00	≤0.035	≤0.030	2.50-3.00	1.30-2.00	-	-	-
Ferrite Stainless Steel	405	0Cr13Al	≤0.08	11.50-14.50	3)	≤1.00	≤0.035	≤0.030	-	≤ 1.00	-	-	Al 0.10-0.30
	410L	00Cr12	≤0.030	11.00-13.00	3)	≤1.00	≤0.035	≤0.030	-	≤1.00	-	-	-
	430	1Cr17	≤0.12	16.00-18.00	3)	≤1.25	≤0.035	≤0.030	-	≤ 0.75	-	-	-
	430F	Y1Cr17	≤0.12	16.00-18.00	3)	≤1.00	≤0.035	≥0.15	1)	≤ 1.00	-	-	-
	434	1Cr17Mo	≤0.12	16.00-18.00	3)	≤1.00	≤0.035	≤0.030	0.75-1.25	≤ 1.00	-	-	-
	447J1	00Cr30Mo2	≤0.010	28.50-32.00	-	≤0.40	≤0.035	≤0.030	1.50-2.50	≤ 0.40	-	≤0.015	-
	XM27	00Cr27Mo	≤0.010	25.00-27.50	-	≤0.40	≤0.035	≤0.030	0.75-1.50	≤ 0.40	-	≤0.015	-
Martensite stainless steel	403	1Cr12	≤0.15	11.50-13.00	3)	≤1.00	≤0.035	≤0.030	-	≤ 0.50	-	-	-
	410	1Cr13	≤0.15	11.50-13.50	3)	≤1.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	405	0Cr13	≤0.08	11.50-13.50	3)	≤1.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	416	Y1Cr13	≤0.15	12.00-14.00	3)	≤1.25	≤0.035	≥0.15	1)	≤ 1.00	-	-	-
	410J1	1Cr13Mo	≤0.08-0.18	11.50-14.00	3)	≤1.00	≤0.035	≤0.030	0.30-0.60	≤ 0.60	-	-	-
	420J1	2Cr13	0.16-0.25	12.00-14.00	3)	≤1.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	420J2	3Cr13	0.26-0.35	12.00-14.00	3)	≤1.00	≤0.035	≤0.030	-	≤ 1.00	-	-	-
	420F	Y3Cr13	0.26-0.40	12.00-14.00	3)	≤1.25	≤0.035	≥0.15	1)	≤ 1.00	-	-	-
		3Cr13Mo	0.28-0.35	12.00-14.00	3)	≤1.00	≤0.035	≤0.030	0.50-1.00	≤ 0.80	-	-	-
		4Cr13	0.36-0.45	12.00-14.00	3)	≤0.80	≤0.035	≤0.030	-	≤ 0.60	-	-	-
	431	1Cr17Ni2	0.11-0.17	16.00-18.00	1.50-2.50	≤0.80	≤0.035	≤0.030	-	≤ 0.80	-	-	-
	440A	7Cr17	0.60-0.75	16.00-18.00	3)	≤1.00	≤0.035	≤0.030	4)	≤ 1.00	-	-	-
	440B	8Cr17	0.75-0.95	16.00-18.00	3)	≤1.00	≤0.035	≤0.030	4)	≤ 1.00	-	-	-
		9Cr18	0.90-1.00	17.00-19.00	3)	≤0.80	≤0.035	≤0.030	4)	≤ 0.80	-	-	-
	440C	11Cr17	0.95-1.20	16.00-18.00	3)	≤1.00	≤0.035	≤0.030	4)	≤ 1.00	-	-	-
	440F	Y11Cr17	0.95-1.20	16.00-18.00	3)	≤1.25	≤0.035	≥0.15	4)	≤ 1.00	-	-	-
		9Cr18Mo	0.95-1.10	16.00-18.00	3)	≤0.80	≤0.035	≤0.030	0.40-0.70	≤ 0.80	-	-	-
		9Cr18MoV	0.85-0.95	17.00-19.00	3)	≤0.80	≤0.035	≤0.030	1.00-1.30	≤ 0.80	-	-	V 0.07- 0.12
PH Stainless Steel	630	0Cr17Ni4Cu4Nb	≤0.07	15.50-17.50	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤ 1.00	3.00-5.00	-	Nb 0.15- 0.45
	631	0Cr17Ni7Al	≤0.09	16.00-18.00	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤ 1.00	≤ 0.50	-	Al 0.75- 1.50
	632	0Cr15Ni7Mo2Al	≤0.09	14.00-16.00	6.50-7.50	≤1.00	≤0.035	≤0.030	2.00-3.00	≤ 1.00	-	-	Al 0.75- 1.50

Characteristics and application
2B	The surface brightness and flatness of no 2B is better than no2D. Then through a special surface treatment to improve its mechanical properties, No2B could nearly satisfy comprehensive uses.
No.1	Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc.
No.4	Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc.
HL	Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc.
BA	Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc.
8K	The product has excellent brightness and perfect reflexivity can to be the mirror.

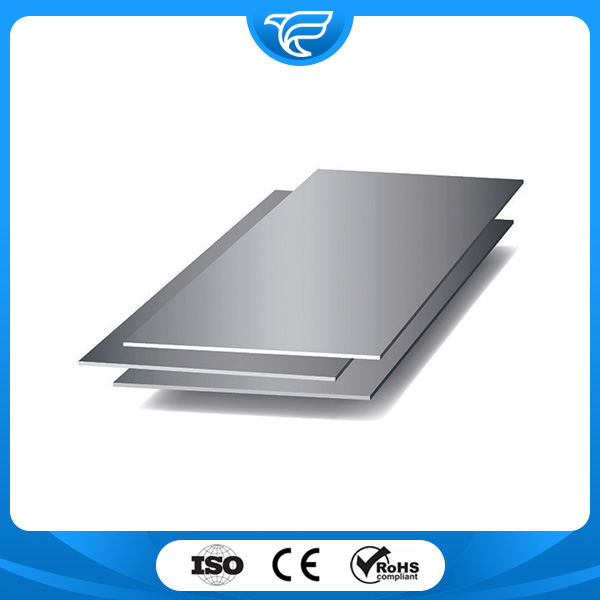

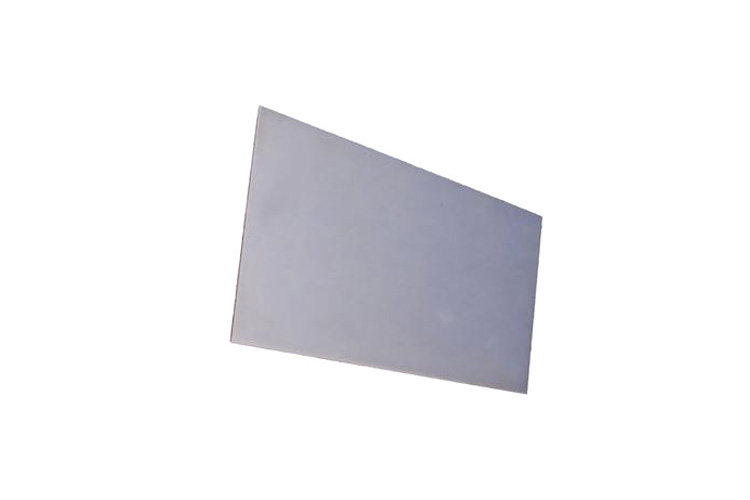

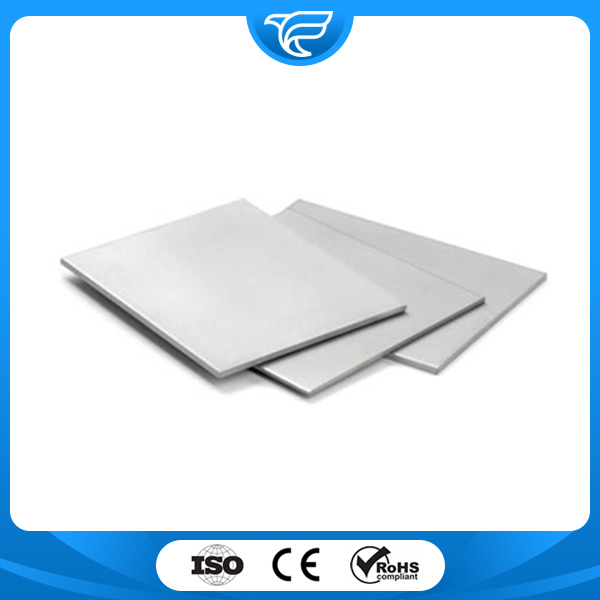

Product Show

Product Application

Where low maintenance and corrosion resistance is required, Stainless Steel Sheet and Stainless Steel Plate are a natural choice and are used in a diverse range of applications from modern architecture for cladding or fascias, to the food hygiene industry due to its anti-bacterial qualities.

Industrial Use of Stainless Steel Sheet and Stainless Steel Plate: Chemical and fuel tankers, chemical and petro-chemical plants, food processing and pharmaceutical industries where clean environments are required, construction, modern architecture.
